谈及运用FPGA技术处理CMOS摄像头捕捉的视频信息，并通过USB2.0接口在电脑屏幕上展示，众多技术发烧友无不眼前一亮。这确实是一项集多种技术于一体的既复杂又充满趣味的工作。
FPGA技术与摄像头的结合

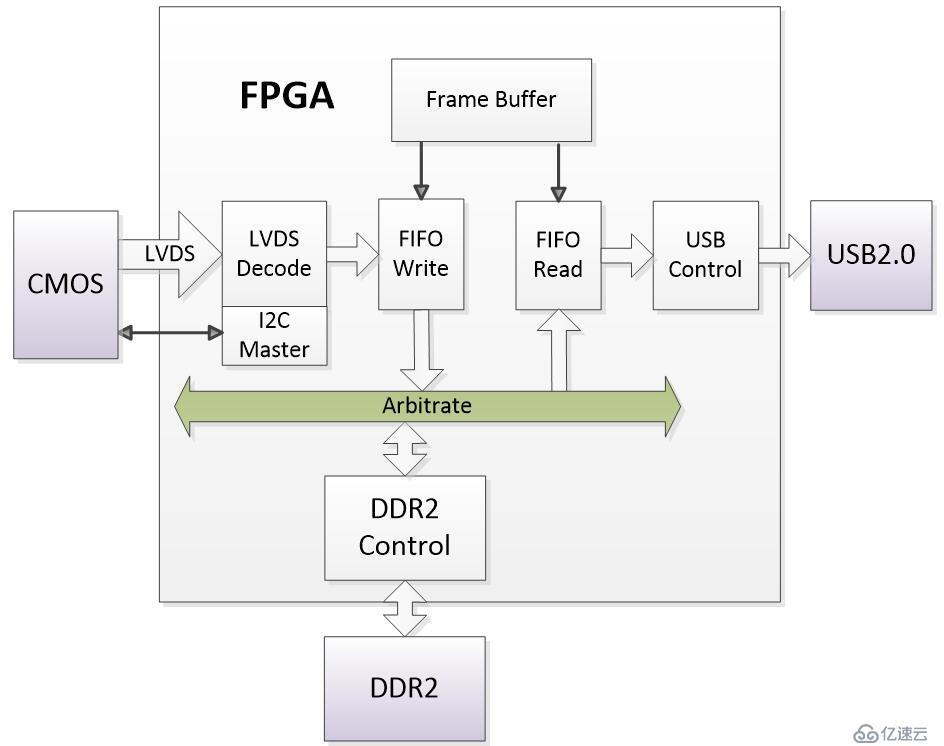

FPGA在视频数据处理方面表现优异。在这个设计案例中，我们需对CMOS摄像头的视频数据进行操作。该摄像头使用LVDS接口，支持通过1至4个数据通道传输8至12位数据。在如安防监控等实际应用中，这项技术能保证图像数据质量上乘。FPGA技术高效处理采集的视频数据，为后续操作奠定基础。其高效之处在于快速的数据采集与存储。
接下来涉及数据在不同时钟域间的存储，不论是写入DDR2还是读取，都涉及对数据的妥善处理。以某个特定视频处理项目为例，确保数据在时钟域间的读写顺畅，对于视频的流畅播放至关重要。
USB2.0在数据传输中的角色
SpiWriteRegister(0x01,0x03,0x01);// soft reset SpiWriteRegister(0x01,0x00,0x00);SpiWriteRegister(0x30,0x34,0x01);SpiWriteRegister(0x30,0x35,0xc2); SpiWriteRegister(0x33,0x0b,0x4c);SpiWriteRegister(0x36,0x64,0x09);SpiWriteRegister(0x36,0x38,0x82); SpiWriteRegister(0x3d,0x08,0x00);SpiWriteRegister(0x36,0x40,0x03);SpiWriteRegister(0x36,0x28,0x07); SpiWriteRegister(0x32,0x05,0x93); //rnc SpiWriteRegister(0x36,0x20,0x42);SpiWriteRegister(0x36,0x23,0x06);SpiWriteRegister(0x36,0x27,0x02); SpiWriteRegister(0x36,0x21,0x28);SpiWriteRegister(0x36,0x3b,0x00);SpiWriteRegister(0x36,0x33,0x24); SpiWriteRegister(0x36,0x34,0xff); //fpn optimize SpiWriteRegister(0x34,0x16,0x10);SpiWriteRegister(0x3e,0x03,0x0b);SpiWriteRegister(0x3e,0x08,0x03); SpiWriteRegister(0x3e,0x09,0x20);SpiWriteRegister(0x3e,0x01,0x23); SpiWriteRegister(0x3e,0x14,0xb0);SpiWriteRegister(0x33,0x0b,0x40);SpiWriteRegister(0x3e,0x08,0x3f); SpiWriteRegister(0x36,0x3b,0x80);SpiWriteRegister(0x36,0x23,0x07);SpiWriteRegister(0x50,0x00,0x01); SpiWriteRegister(0x3e,0x01,0x00);SpiWriteRegister(0x3e,0x02,0x30);SpiWriteRegister(0x32,0x0c,0x05); SpiWriteRegister(0x32,0x0d,0x46);SpiWriteRegister(0x32,0x0e,0x02); SpiWriteRegister(0x32,0x0f,0x58);SpiWriteRegister(0x36,0x38,0x85);SpiWriteRegister(0x33,0x06,0x50); SpiWriteRegister(0x33,0x0b,0x68);SpiWriteRegister(0x33,0x08,0x10);SpiWriteRegister(0x3e,0x01,0x00); SpiWriteRegister(0x36,0x3b,0x00);SpiWriteRegister(0x36,0x63,0xf8);SpiWriteRegister(0x36,0x64,0x0a); SpiWriteRegister(0x36,0x33,0x27);SpiWriteRegister(0x30,0x3a,0x3a); SpiWriteRegister(0x30,0x3a,0x3a);SpiWriteRegister(0x30,0x3a,0x3a);SpiWriteRegister(0x30,0x3a,0x3a); SpiWriteRegister(0x36,0x3b,0x00);SpiWriteRegister(0x34,0x16,0x38);SpiWriteRegister(0x3e,0x08,0x23); SpiWriteRegister(0x3c,0x00,0x41); //FIFO RESET for mipi SpiWriteRegister(0x30,0x19,0x00); SpiWriteRegister(0x30,0x31,0x0a); // 10bit SpiWriteRegister(0x30,0x00,0x00);SpiWriteRegister(0x30,0x01,0x00);SpiWriteRegister(0x30,0x39,0x20); SpiWriteRegister(0x30,0x3a,0x31);SpiWriteRegister(0x30,0x3b,0x02);SpiWriteRegister(0x30,0x3c,0x08); SpiWriteRegister(0x4b,0x00,0xa2); //must SpiWriteRegister(0x30,0x22,0x19); //must SpiWriteRegister(0x30,0x3f,0x01); //must SpiWriteRegister(0x30,0x30,0x04); //must SpiWriteRegister(0x30,0x2b,0xa0); //must SpiWriteRegister(0x36,0x20,0x43);SpiWriteRegister(0x36,0x21,0x18);SpiWriteRegister(0x45,0x01,0xc0); SpiWriteRegister(0x45,0x02,0x16); //br recieve inv off SpiWriteRegister(0x36,0x23,0x07);SpiWriteRegister(0x50,0x00,0x01);SpiWriteRegister(0x36,0x20,0x43); SpiWriteRegister(0x33,0x00,0x30);SpiWriteRegister(0x3e,0x01,0x14);SpiWriteRegister(0x36,0x3b,0x80); SpiWriteRegister(0x36,0x64,0x0a);SpiWriteRegister(0x3e,0x08,0x23); SpiWriteRegister(0x34,0x16,0x00);SpiWriteRegister(0x36,0x33,0x20); SpiWriteRegister(0x36,0x33,0x23);SpiWriteRegister(0x32,0x11,0x0c);SpiWriteRegister(0x3e,0x0f,0x05); SpiWriteRegister(0x36,0x3b,0x08); //fpn SpiWriteRegister(0x36,0x33,0x22); //nvdd SpiWriteRegister(0x33,0x02,0x0c);//rst go low SpiWriteRegister(0x33,0x83,0x0a);// pbias en rise edge SpiWriteRegister(0x36,0x23,0x04); SpiWriteRegister(0x33,0x82,0x0f); //sa fall edge SpiWriteRegister(0x3e,0x0f,0x84); //gain SpiWriteRegister(0x3e,0x0e,0x03); //gain SpiWriteRegister(0x3e,0x08,0x27);SpiWriteRegister(0x3e,0x08,0x23);SpiWriteRegister(0x36,0x64,0x05); SpiWriteRegister(0x33,0x0b,0x68); SpiWriteRegister(0x36,0x38,0x84);SpiWriteRegister(0x5b,0x00,0x02);SpiWriteRegister(0x5b,0x01,0x03); SpiWriteRegister(0x5b,0x02,0x01);SpiWriteRegister(0x5b,0x03,0x01);SpiWriteRegister(0x36,0x3b,0x02); SpiWriteRegister(0x36,0x32,0x54);SpiWriteRegister(0x36,0x33,0x32);SpiWriteRegister(0x34,0x16,0x0e); SpiWriteRegister(0x36,0x64,0x0e);SpiWriteRegister(0x36,0x63,0x88);SpiWriteRegister(0x33,0x0b,0x50); SpiWriteRegister(0x36,0x22,0x06); //blksun SpiWriteRegister(0x36,0x30,0xb3);SpiWriteRegister(0x34,0x16,0x11);SpiWriteRegister(0x01,0x00,0x01);

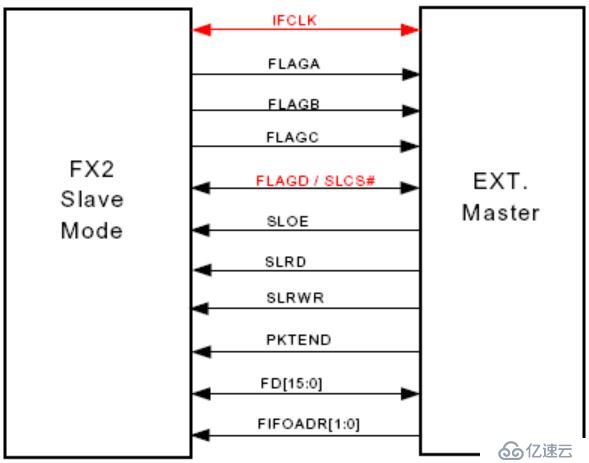

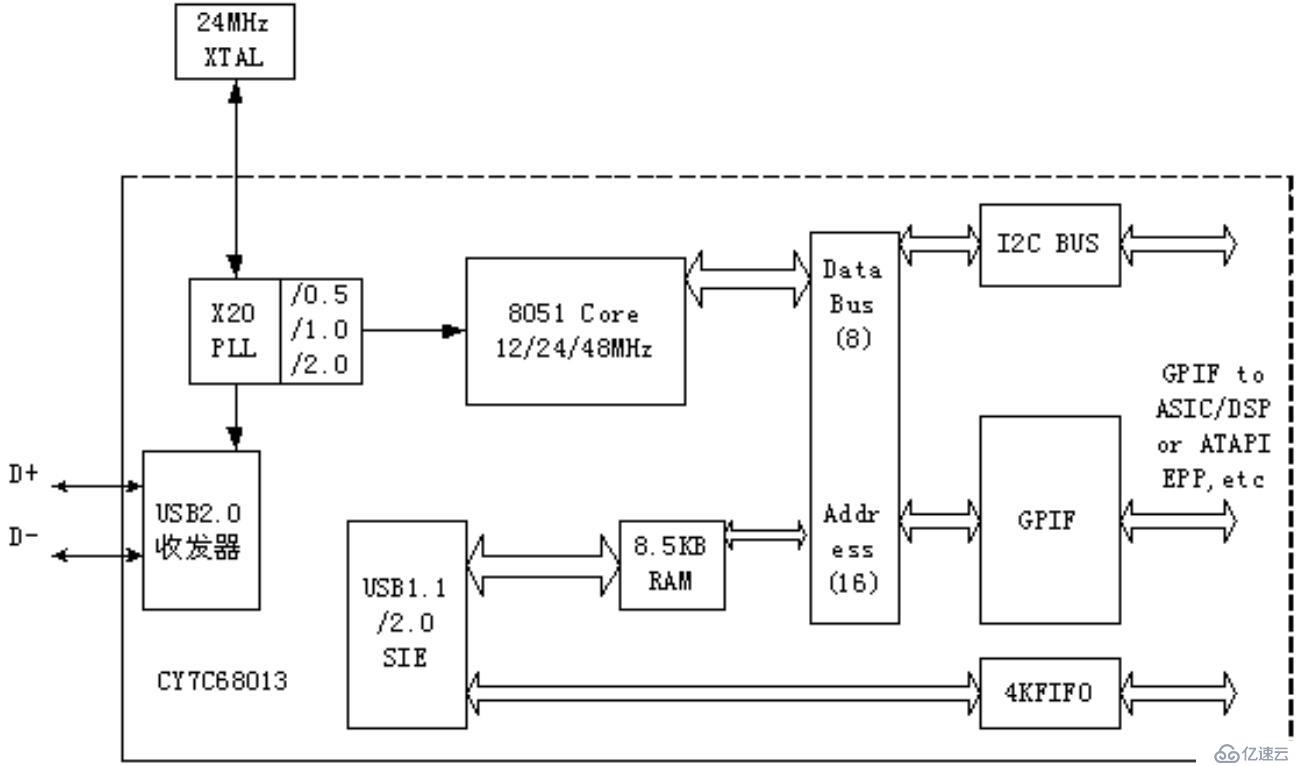

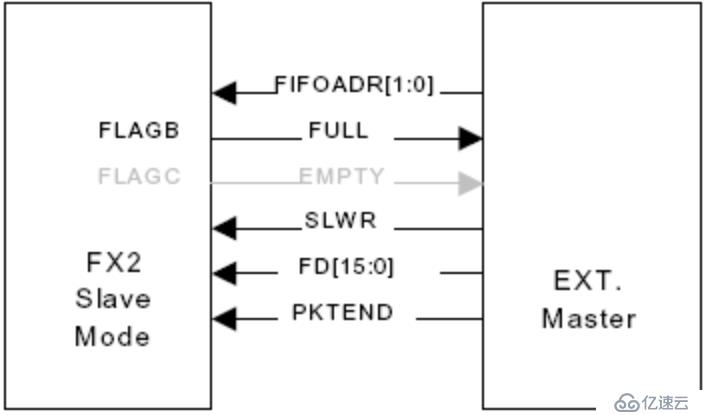

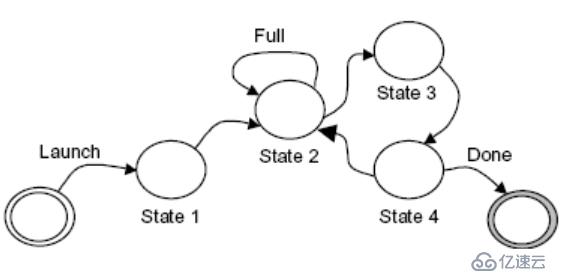

USB2.0在此处扮演着至关重要的角色。我们公司的EZ-USB FX2性能卓越，是全球首个整合USB2.0技术的微处理器。它集成了众多功能，例如USB2.0收发器等。在数据传输过程中，若将FX2视为USB2.0接口进行高速通信，便可以运用Slave FIFO传输模式。以传输大量视频数据为例，此方法能有效提升传输效率。

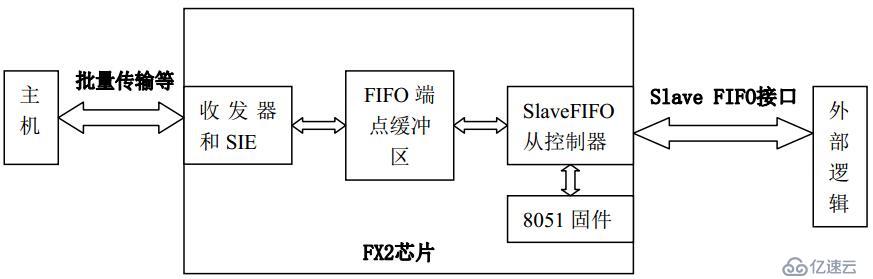

在这种模式下，8051固件主要承担设置相关寄存器的任务。这好比一个团队中各成员各尽其责，8051固件专注于自己的领域，保障USB2.0传输在Slave FIFO模式下能够顺畅进行。
开发平台与工具

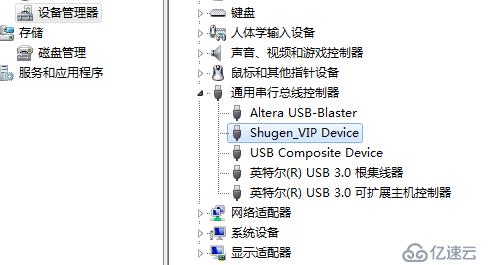

开发EZ-USB驱动程序需要特定的工具支持。比如，微软的WDW DDK和VC++就是必不可少的。DDK是可以获取到的资源。至于USB2.0的固件程序，则是在KEIL平台上进行的。KEIL这个平台对于从事相关工作的人来说很熟悉。在这个项目中，有三个关键的源文件，它们是构建整个程序的关键组成部分。
在一个研发团队里，各个开发人员各自在各自的平台上负责开发不同的模块。只有将这些模块最终拼接在一起，视频数据才能通过USB2.0接口在电脑屏幕上正确显示，系统才能正常运行。
数据的同步操作
为了确保USB PHY芯片与FPGA的同步，我们采用视频信号中的场同步信号vsync进行同步，并借助68013的INT0引脚来引发中断。以处理高清视频数据为例，数据同步至关重要，否则画面可能会出现撕裂或卡顿。在实际操作中，需要使用特定的中断函数，目的在于保证数据传输的精确性和处理的高效性。
代码编译与文件固化
完成代码设计后，需完成两项关键步骤。首先，需编译代码生成HEX文件，该文件用于调试和下载至ram。其次，要生成IIC文件，此文件用于固件固化。此外，固化IIC文件还需使用特定工具，且这些工具的使用也有特定规范。在操作过程中，若开发人员操作不当，可能导致固化失败，进而影响项目整体进度。
